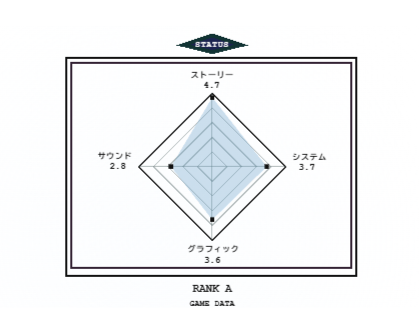

サイトでたまに見るような評価レーダーチャート（WordPressのカスタムHTMLブロックに貼り付けるだけで表示可能）

<div class="xr-radar-wrap">
  <div class="xr-radar" data-values="4.7,3.7,3.6,2.8" data-labels="ストーリー,システム,グラフィック,サウンド" data-max="5" data-title="STATUS" data-type="GAME DATA" data-rank="on"></div>
</div>

<style>
.xr-radar-wrap {
  width: 100%;
  max-width: 480px;
  margin: 0 auto;
  font-family:
    "Press Start 2P",
    "VT323",
    "Courier New",
    monospace;
}

.xr-radar-svg {
  width: 100%;
  height: auto;
  display: block;
  image-rendering: pixelated;
}

.xr-radar-status-diamond {
  fill: #1b2350;
  stroke: #133;
  stroke-width: 6;
  shape-rendering: crispEdges;
}

.xr-radar-status-text {
  fill: #f8f8f8;
  font-size: 12px;
  font-weight: bold;
  letter-spacing: 0.08em;
  dominant-baseline: middle;
}

.xr-radar-outer-frame {
  fill: none;
  stroke: #111;
  stroke-width: 3;
  shape-rendering: crispEdges;
}

.xr-radar-inner-frame {
  fill: transparent;
  stroke: #323;
  stroke-width: 3;
  shape-rendering: crispEdges;
}

.xr-radar-grid polygon,
.xr-radar-grid line {
  fill: none;
  stroke: #566;
  stroke-width: 0.7;
  shape-rendering: crispEdges;
}

.xr-radar-grid polygon:first-child {
  stroke: #222;
  stroke-width: 2;
}

.xr-radar-shape-shadow {
  fill: rgba(0, 0, 10, 0.1);
}

.xr-radar-shape {
  fill: rgba(140, 210, 255, 0.28);
  stroke: none;
  shape-rendering: crispEdges;
}

.xr-radar-point {
  fill: #111;
  stroke: #111;
  stroke-width: 1;
  shape-rendering: crispEdges;
}

.xr-radar-label {
  font-size: 12px;
  fill: #111;
  font-weight: bold;
  dominant-baseline: middle;
  letter-spacing: 0.04em;
}

.xr-radar-value {
  font-size: 14px;
  fill: #111;
  font-weight: bold;
  dominant-baseline: middle;
}

.xr-radar-info text {
  font-size: 12px;
  fill: #111;
  font-weight: bold;
}

.xr-radar-rank-value {
  fill: #111;
}

@media (max-width: 480px) {
  .xr-radar-status-text,
  .xr-radar-label {
    font-size: 10px;
  }

  .xr-radar-value,
  .xr-radar-info text {
    font-size: 10px;
  }
}
</style>

<script>
(function () {
  const SVG_NS = "http://www.w3.org/2000/svg";

  function svgEl(tag, attrs = {}, text = "") {
    const el = document.createElementNS(SVG_NS, tag);
    for (const key in attrs) el.setAttribute(key, attrs[key]);
    if (text) el.textContent = text;
    return el;
  }

  function clamp(value, min, max) {
    return Math.max(min, Math.min(value, max));
  }

  function formatValue(value) {
    const n = Math.round(value * 10) / 10;
    return Number.isInteger(n) ? String(Math.round(n)) : String(n);
  }

  function textAnchor(x, centerX, deadZone) {
    if (x > centerX + deadZone) return "start";
    if (x < centerX - deadZone) return "end";
    return "middle";
  }

  function getRank(avg, maxVal) {
    const normalized = (avg / maxVal) * 5;
    if (normalized >= 4.4) return "S";
    if (normalized >= 3.7) return "A";
    if (normalized >= 3.3) return "B+";
    if (normalized >= 3.0) return "B";
    if (normalized >= 2.0) return "C";
    return "D";
  }

  function ringPoints(count, cx, cy, radius, rate) {
    const startAngle = -Math.PI / 2;
    return Array.from({ length: count }, (_, i) => {
      const angle = startAngle + (Math.PI * 2 * i) / count;
      return [
        cx + Math.cos(angle) * radius * rate,
        cy + Math.sin(angle) * radius * rate
      ];
    });
  }

  function polygonPoints(values, cx, cy, radius, maxVal) {
    const count = values.length;
    const startAngle = -Math.PI / 2;

    return values.map((value, i) => {
      const angle = startAngle + (Math.PI * 2 * i) / count;
      const rate = clamp(value, 0, maxVal) / maxVal;
      return [
        cx + Math.cos(angle) * radius * rate,
        cy + Math.sin(angle) * radius * rate
      ];
    });
  }

  function pointsStr(points) {
    return points.map((p) => `${p[0]},${p[1]}`).join(" ");
  }

  function buildChart(chart) {
    if (chart.dataset.xrBuilt === "1") return;
    chart.dataset.xrBuilt = "1";

    const values = (chart.dataset.values || "")
      .split(",")
      .map(v => Number(v.trim()))
      .filter(v => !Number.isNaN(v));

    const labels = (chart.dataset.labels || "")
      .split(",")
      .map(v => v.trim())
      .filter(Boolean);

    const maxVal = Number(chart.dataset.max || 5);
    const titleText = chart.dataset.title || "STATUS";
    const typeText = chart.dataset.type || "GAME DATA";
    const rankOn = (chart.dataset.rank || "on") !== "off";

    if (values.length < 4 || values.length > 6) {
      chart.innerHTML = "<p style='font-size:12px;'>レーダーチャートは4～6項目で指定してください。</p>";
      return;
    }

    if (values.length !== labels.length) {
      chart.innerHTML = "<p style='font-size:12px;'>data-values と data-labels の数を一致させてください。</p>";
      return;
    }

    const cx = 150;
    const cy = 180;
    const radius = 115;
    const valueRadius = 135;
    const labelRadius = 150;
    const gridLevels = 5;
    const deadZone = 8;

    const labelAdjust = [
      { dx: 0, dy: 8, fontSize: 13 },
      { dx: -25, dy: -14, fontSize: 13 },
      { dx: 2, dy: -19, fontSize: 13 },
      { dx: 25, dy: -15, fontSize: 13 },
      { dx: 0, dy: 0, fontSize: 12 },
      { dx: 0, dy: 0, fontSize: 12 }
    ];

    const valueAdjust = [
      { dx: -1, dy: 9, fontSize: 14 },
      { dx: 0, dy: 2, fontSize: 14 },
      { dx: 0, dy: 12, fontSize: 14 },
      { dx: 0, dy: 0, fontSize: 14 },
      { dx: 0, dy: 0, fontSize: 13 },
      { dx: 0, dy: 0, fontSize: 13 }
    ];

    const finalPoints = polygonPoints(values, cx, cy, radius, maxVal);

    const svg = svgEl("svg", {
      viewBox: "-100 -40 500 440",
      class: "xr-radar-svg",
      "aria-label": `${values.length}項目レーダーチャート`
    });

    svg.appendChild(svgEl("polygon", {
      points: "150,-25 195,-10 150,1 105,-10",
      class: "xr-radar-status-diamond"
    }));

    svg.appendChild(svgEl("text", {
      x: 150,
      y: -10,
      "text-anchor": "middle",
      class: "xr-radar-status-text"
    }, titleText));

    svg.appendChild(svgEl("rect", {
      x: -77.8, y: 10, width: 453, height: 340,
      class: "xr-radar-outer-frame"
    }));

    svg.appendChild(svgEl("rect", {
      x: -70, y: 19.6, width: 437, height: 320,
      class: "xr-radar-inner-frame"
    }));

    const gridGroup = svgEl("g", { class: "xr-radar-grid" });

    for (let level = 1; level <= gridLevels; level++) {
      const rate = (gridLevels - level + 1) / gridLevels;
      gridGroup.appendChild(svgEl("polygon", {
        points: pointsStr(ringPoints(values.length, cx, cy, radius, rate))
      }));
    }

    ringPoints(values.length, cx, cy, radius, 1).forEach((p) => {
      gridGroup.appendChild(svgEl("line", {
        x1: cx,
        y1: cy,
        x2: p[0],
        y2: p[1]
      }));
    });

    svg.appendChild(gridGroup);

    svg.appendChild(svgEl("polygon", {
      class: "xr-radar-shape-shadow",
      points: pointsStr(finalPoints)
    }));

    svg.appendChild(svgEl("polygon", {
      class: "xr-radar-shape",
      points: pointsStr(finalPoints)
    }));

    const pointGroup = svgEl("g");
    const pointSize = 6;
    const half = pointSize / 2;

    finalPoints.forEach((p) => {
      pointGroup.appendChild(svgEl("rect", {
        x: p[0] - half,
        y: p[1] - half,
        width: pointSize,
        height: pointSize,
        class: "xr-radar-point"
      }));
    });

    svg.appendChild(pointGroup);

    const valueGroup = svgEl("g");
    const valueBasePoints = ringPoints(values.length, cx, cy, valueRadius, 1);

    labels.forEach((_, i) => {
      const base = valueBasePoints[i];
      const adj = valueAdjust[i] || { dx: 0, dy: 0, fontSize: 14 };
      const x = base[0] + adj.dx;
      const y = base[1] + adj.dy;

      const text = svgEl("text", {
        x,
        y,
        "text-anchor": textAnchor(x, cx, deadZone),
        class: "xr-radar-value"
      }, formatValue(values[i]));

      text.style.fontSize = adj.fontSize + "px";
      valueGroup.appendChild(text);
    });

    svg.appendChild(valueGroup);

    const labelGroup = svgEl("g");
    const labelBasePoints = ringPoints(values.length, cx, cy, labelRadius, 1);

    labels.forEach((label, i) => {
      const base = labelBasePoints[i];
      const adj = labelAdjust[i] || { dx: 0, dy: 0, fontSize: 12 };
      const x = base[0] + adj.dx;
      const y = base[1] + adj.dy;

      const text = svgEl("text", {
        x,
        y,
        "text-anchor": textAnchor(x, cx, deadZone),
        class: "xr-radar-label"
      }, label);

      text.style.fontSize = adj.fontSize + "px";
      labelGroup.appendChild(text);
    });

    svg.appendChild(labelGroup);

    const infoGroup = svgEl("g", { class: "xr-radar-info" });
    const average = values.reduce((sum, v) => sum + v, 0) / values.length;
    const rank = getRank(average, maxVal);

    if (rankOn) {
      const rankText = svgEl("text", {
        x: 150,
        y: 376,
        "text-anchor": "middle"
      });

      rankText.style.fontSize = "17px";
      rankText.appendChild(document.createTextNode("RANK "));
      rankText.appendChild(svgEl("tspan", { class: "xr-radar-rank-value" }, rank));
      infoGroup.appendChild(rankText);
    }

    const typeNode = svgEl("text", {
      x: 150,
      y: rankOn ? 398 : 388,
      "text-anchor": "middle"
    }, typeText);

    typeNode.style.fontSize = "13px";
    infoGroup.appendChild(typeNode);

    svg.appendChild(infoGroup);

    chart.innerHTML = "";
    chart.appendChild(svg);
  }

  function initRadarCharts() {
    document.querySelectorAll(".xr-radar").forEach(buildChart);
  }

  if (document.readyState === "loading") {
    document.addEventListener("DOMContentLoaded", initRadarCharts);
  } else {
    initRadarCharts();
  }
})();
</script>
